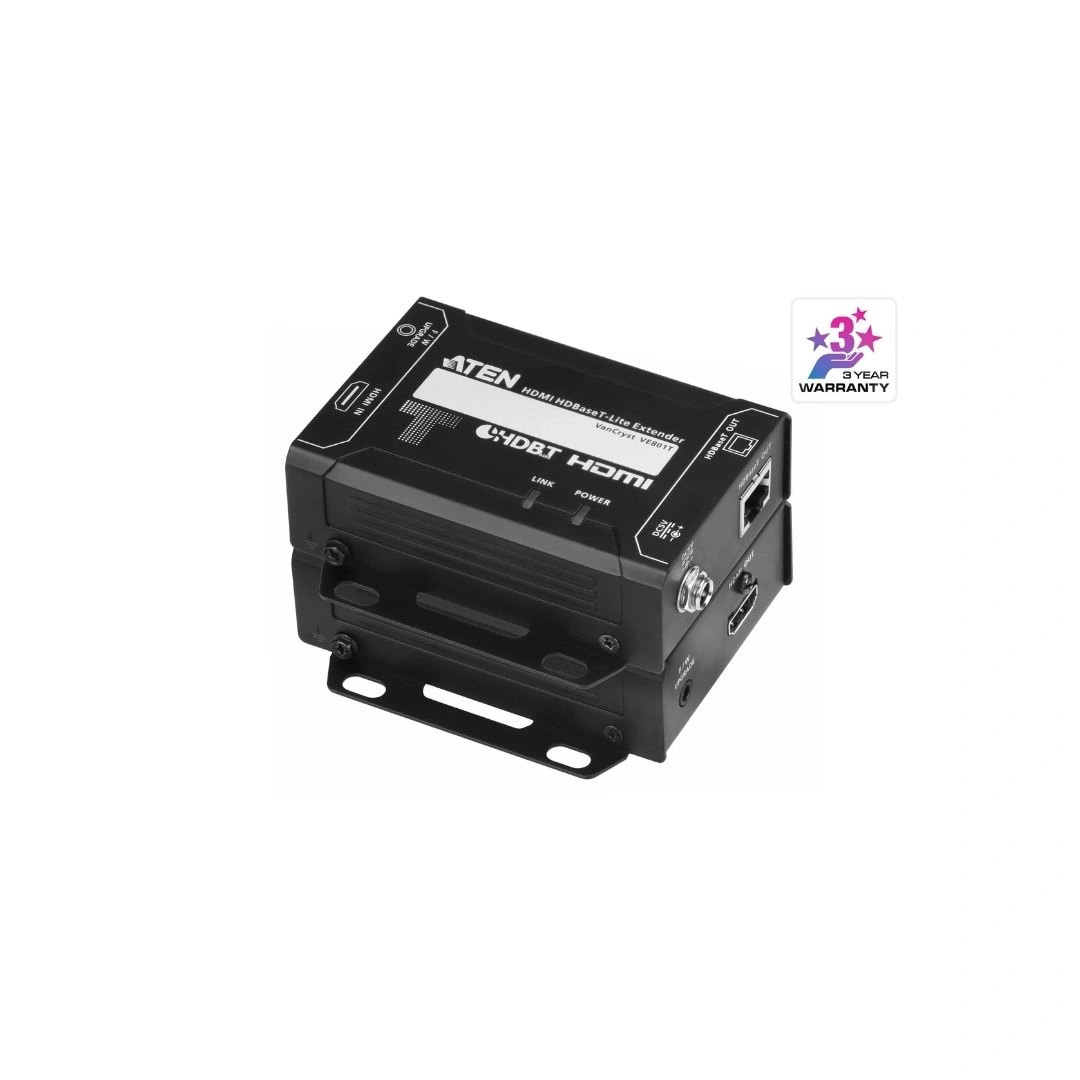

ATEN VE801 HDMI Extender – Product Details

The ATEN VE801 HDMI HDBaseT-Lite Extender is designed to extend high-quality HDMI video and audio signals over long distances using a single Cat 5e, Cat 6 or Cat 6a cable. It is ideal for meeting rooms, digital signage, control rooms, classrooms and professional AV installations.

Key Features

• 4K HDMI extension up to 40 meters using Cat 6a or ATEN 2L-2910 Cat 6 cable
• 1080p extension up to 70 meters using Cat 6a or ATEN 2L-2910 Cat 6 cable
• With Cat 5e/6: 4K up to 35m and 1080p up to 60m
• Uses one Cat 5e / Cat 6 / Cat 6a cable between transmitter and receiver
• Supports 4K UHD, 3D and Deep Color
• HDCP 2.2 compatible
• Supports CEC (Consumer Electronics Control)
• Maximum data rate: 10.2 Gbps
• Maximum pixel clock: 340 MHz
• HDBaseT anti-jamming technology
• Plug-and-play installation
• Durable metal housing
• Rack-mountable design

Supported 4K Resolutions

The VE801 supports 3840 × 2160 and 4096 × 2160, including up to 60 Hz at 4:2:0 and 30 Hz at 4:4:4.

Connections

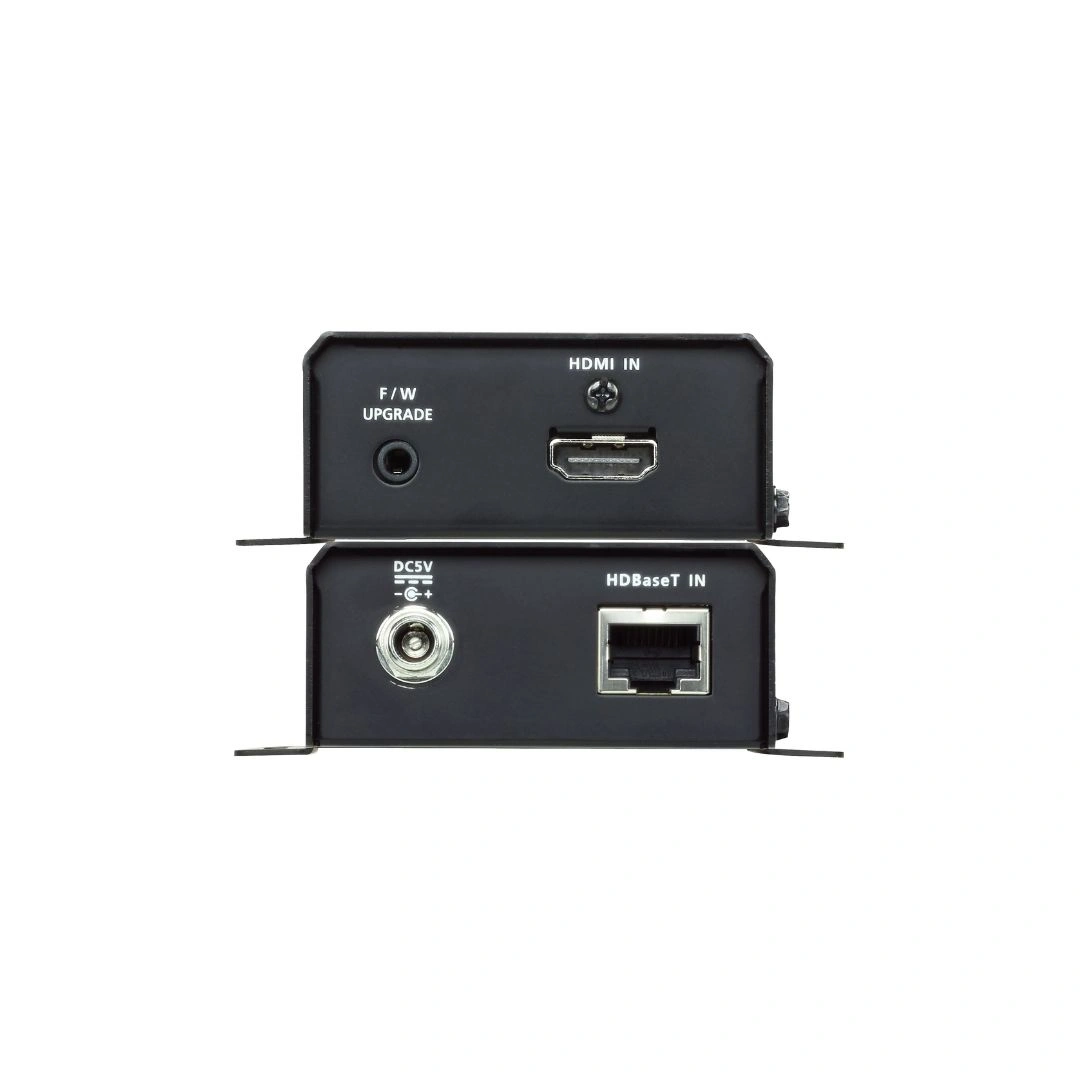

VE801T Transmitter: 1 × HDMI Type-A Female input, 1 × RJ45 HDBaseT port and locking DC power input.

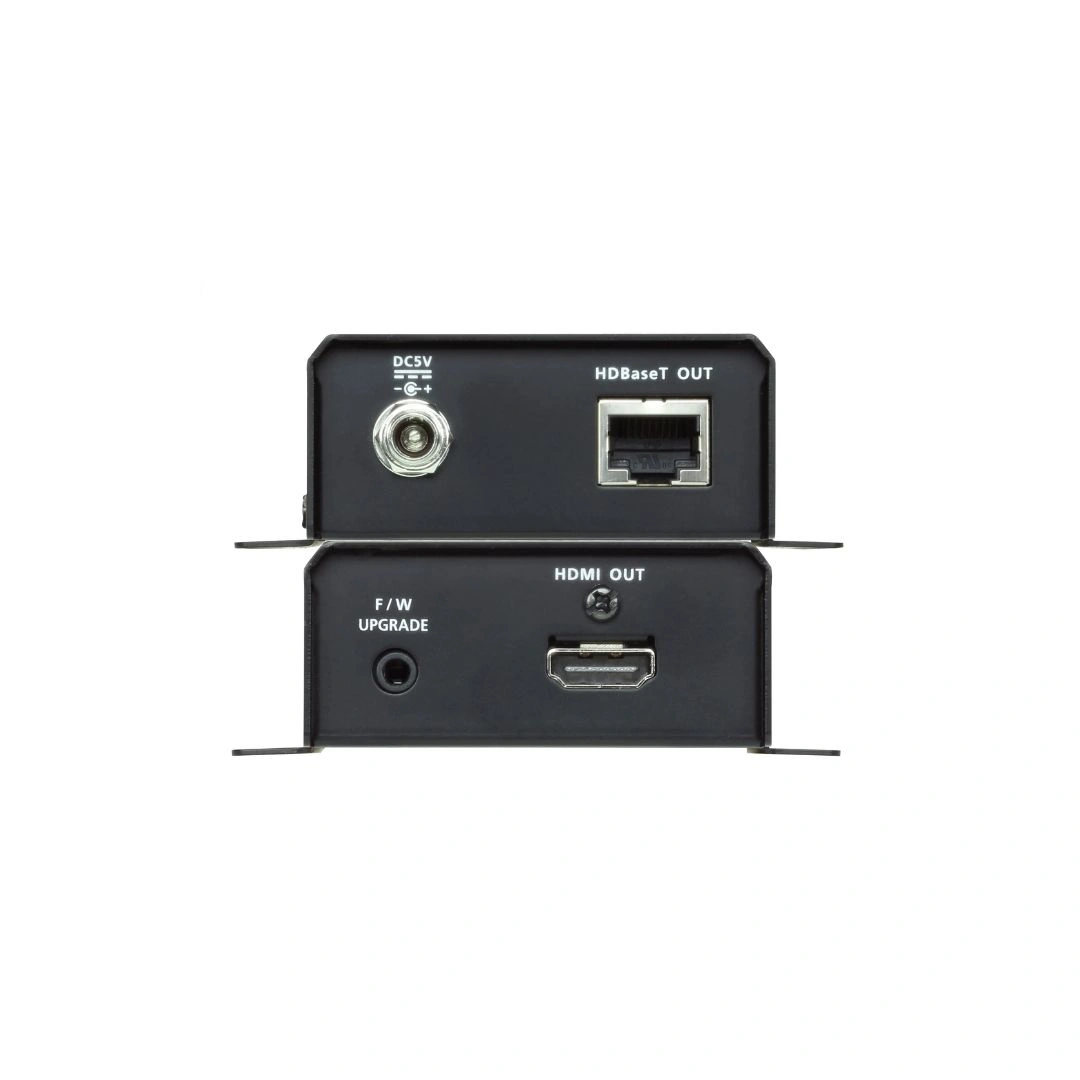

VE801R Receiver: 1 × HDMI Type-A Female output, 1 × RJ45 HDBaseT port and locking DC power input
